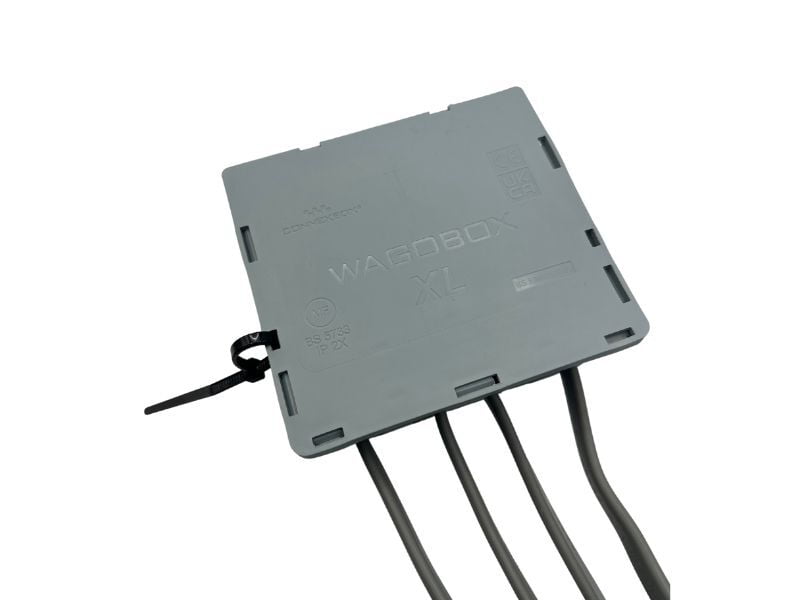

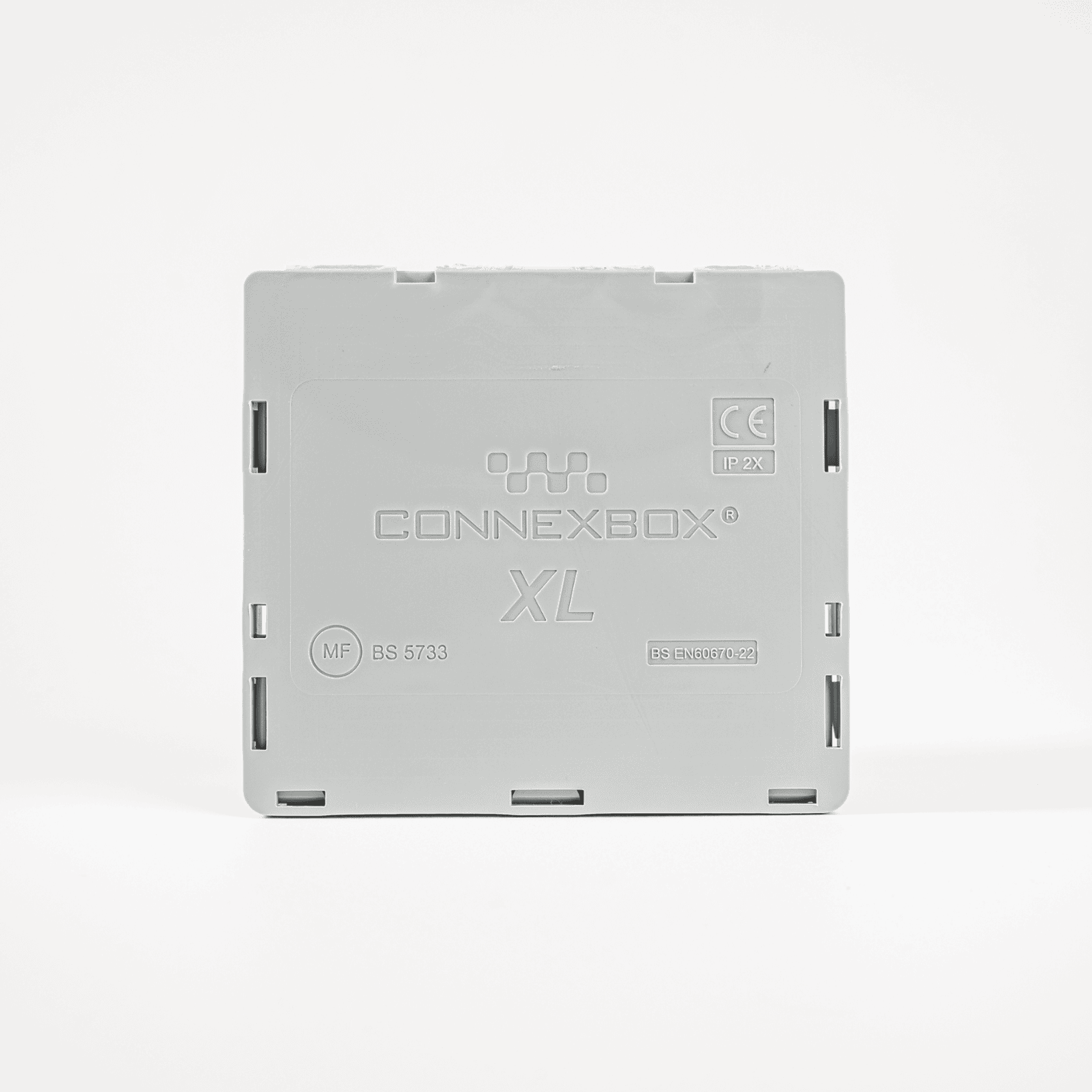

Connexbox® XL
The Connexbox XL is our largest, most capable enclosure.
Purpose designed for installations that demand extra space, clearer organisation, and maximum flexibility. Whether you're running two completely separate circuits or a single, high capacity circuit, the XL gives you room to work without compromise.

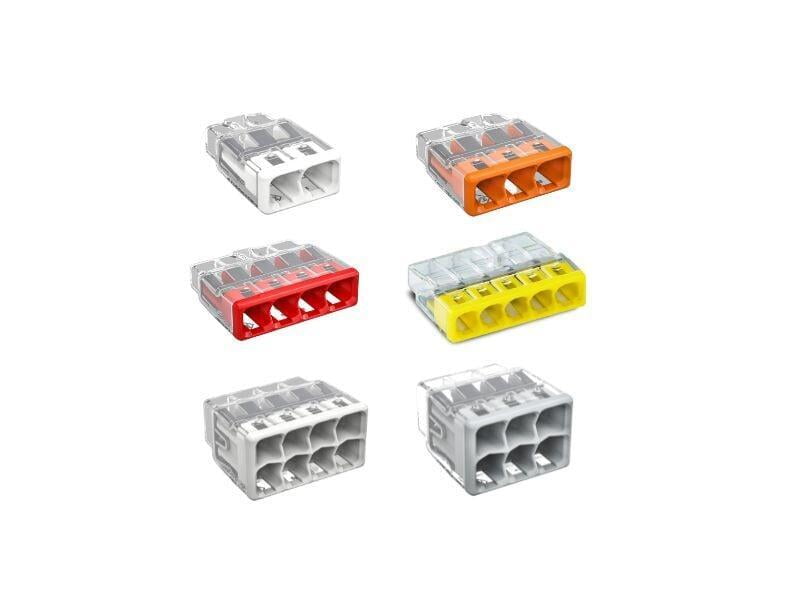

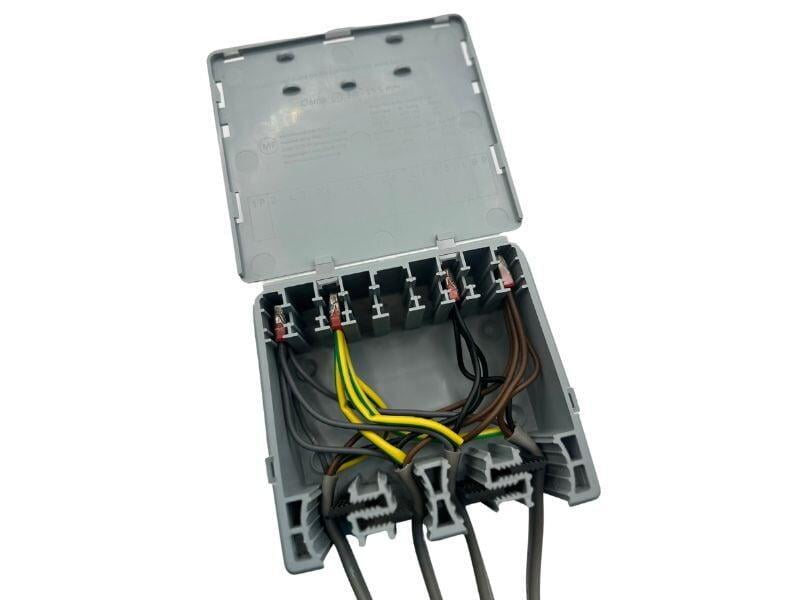

Built to accommodate Wago® 221-4, 2273, and 2773 series connectors, the XL gives electricians the freedom to build complex terminations while keeping everything clean, organised, and secure. Its spacious internal layout ensures smooth cable management and hassle free wiring. No squeezing, forcing, or rearranging required.
For single-circuit setups, the Connexbox XL is fully maintenance free, offering a long term, fit and forget solution ideal for lofts, voids, and inaccessible areas. Cable entries are spacious and reinforced with strong, reliable grippers that keep everything locked securely in place.
Compliant with BS EN 60670 22 and the 18th Edition BS 7671, the Connexbox XL delivers exceptional capacity, clarity, and convenience. When your project needs more space and more control, the Connexbox XL is built to handle it.
Specifications:
| Standards: | BS EN60670-22 BS 5733 (Maintenance Free) |
| Ingress Protection: | IP2X |
| Dimensions: | (L) 162mm x (W) 115mm x (D) 55mm |
| Cable Sizes: | 3mm , 5.5mm , 8mm , 10.5mm , 13mm , 15.5mm |
| Connector Suitability: | Wago® 221-4 , 2273 & 2773 Series Connectors |
| Current / Voltage Rating: | Up to 450v |
Accessories

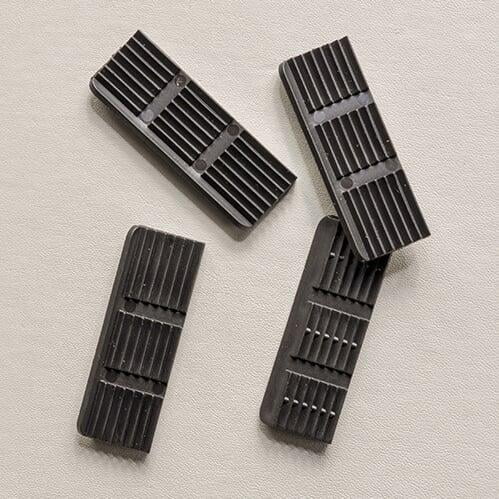

XL Cable Grippers
