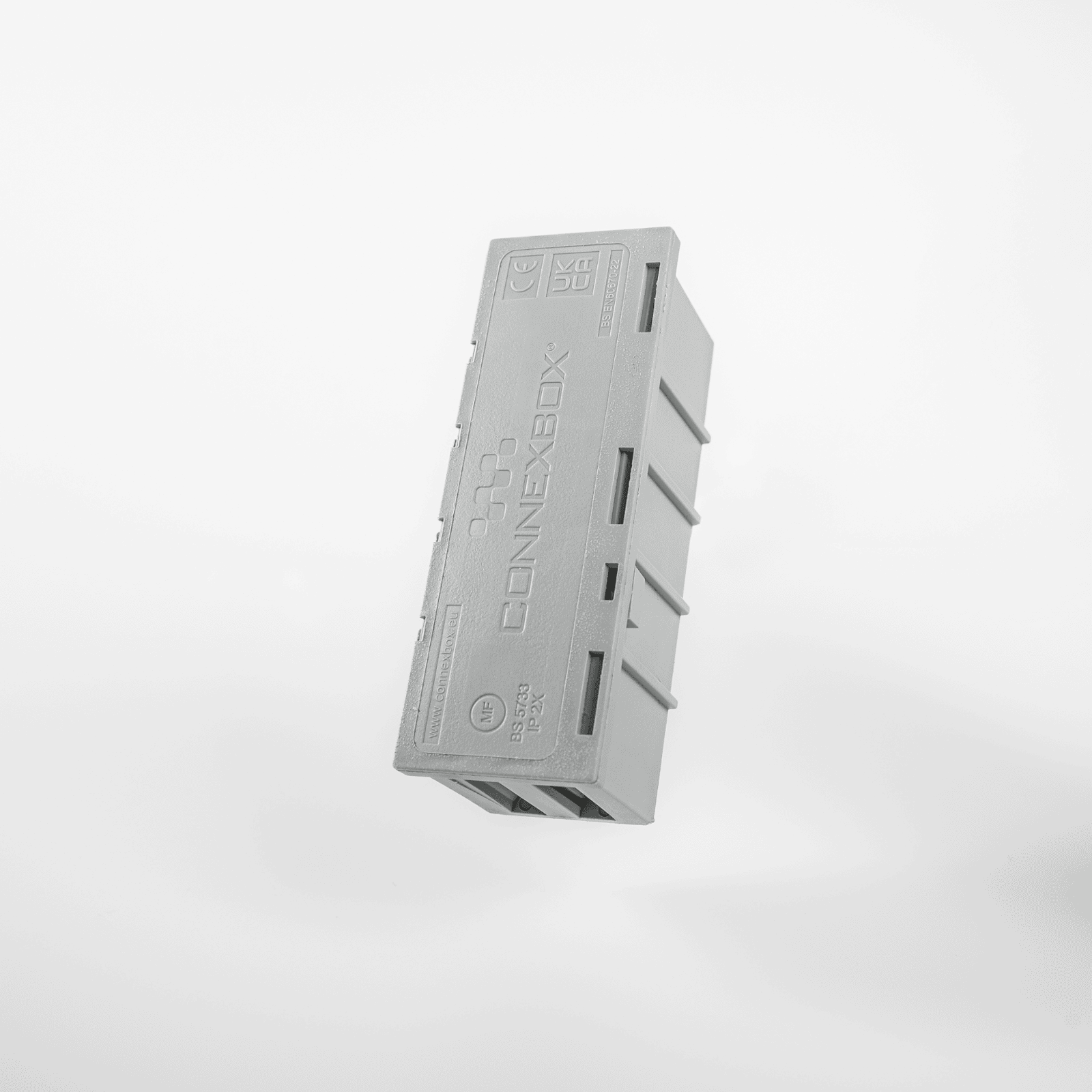

Connexbox® Classic
The original, game-changing junction box.
Purpose-built for Wago® 222 and 773 connectors, the Connexbox Classic makes every job simpler, quicker and safer.

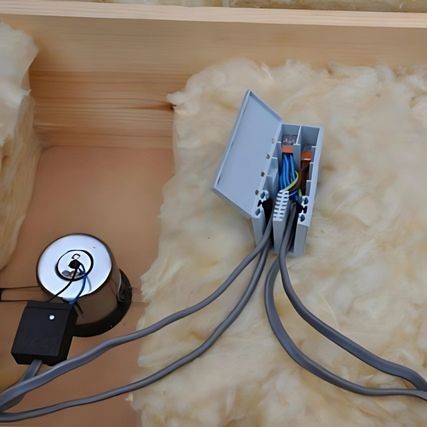

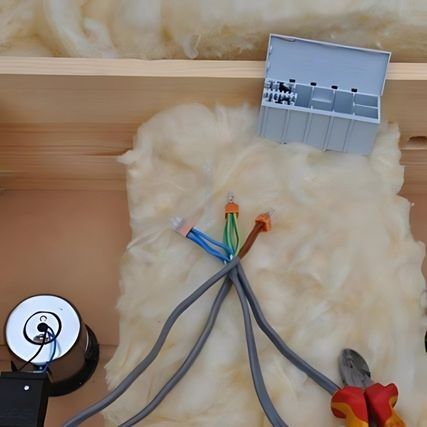

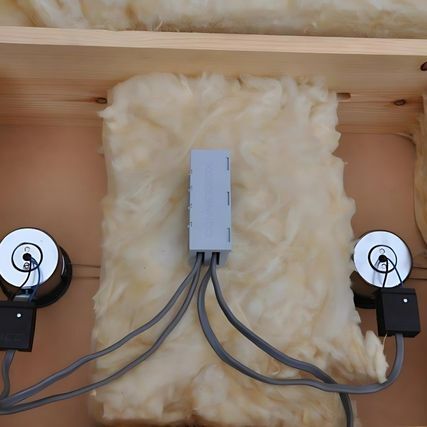

Cables can be connected outside the enclosure, so there’s no fiddling in cramped spaces, and its compact size means the Classic fits easily through a 60 mm spotlight hole.

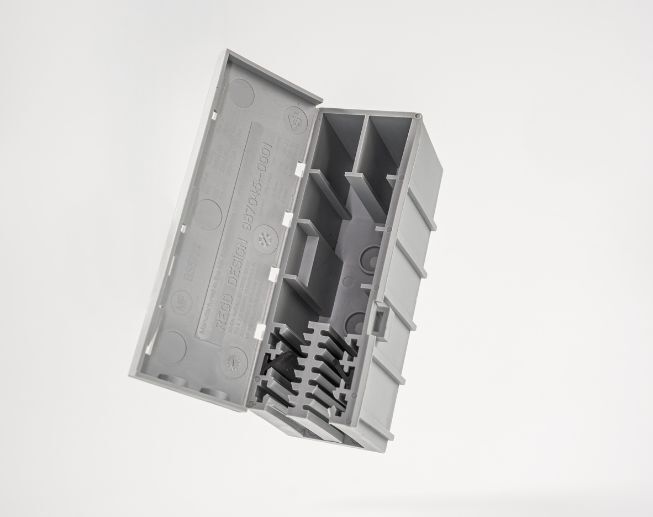

It can handle up to six cables, and adjustable clamps secure flex and twin & earth from 1.0 to 6.0 mm, while robust grippers hold cables up to 8.0 mm in diameter. You can even mix Wago 222 and 773 connectors for up to 24 terminations.
Built to last and fully compliant with BS EN 60670-22 and the 18th Edition BS 7671, the Connexbox Classic delivers speed, flexibility, and professional results every time.
Specifications:
| Standards : | BS 7671 : 2018 BS EN 60670-22 BS 5733 (Maintenance Free) |
| Ingress Protection: | IP2X |
| Dimensions: | (L) 108 mm x (W)34 mm x (D)42 mm |
| Cable Sizes: | 3 x 6.0mm² Twin & Earth or 4 x 4.0mm² Twin & Earth or 6 x 1.0, 1.5 or 2.5mm² Twin & Earth or 6 x 1.0 or 1.5mm² 3-core & Earth. 6 x Flex up to 8mm |
| Connector Suitability: | Wago® 221-4mm series |
| Current / Voltage Rating: | Up to 41A / 400V/4KV |
Connexbox Classic Electrical Enclosure: Instruction Leaflet
To help you get the most out of your Connexbox Classic enclosure, we’ve provided a detailed instruction leaflet below. This guide includes step-by-step instructions to ensure a smooth and safe installation process.
If you have any further questions, our support team is always here to assist!
