Connexbox® Capsule

The Connexbox Capsule is engineered for environments where maximum protection is essential.

With its IP68 rating and fully submergible construction, the Capsule creates a watertight, dust tight seal that keeps connections safe in even the most challenging conditions. From heavy rain to underground moisture and fine debris, it prevents ingress at every level to ensure long lasting, reliable performance.

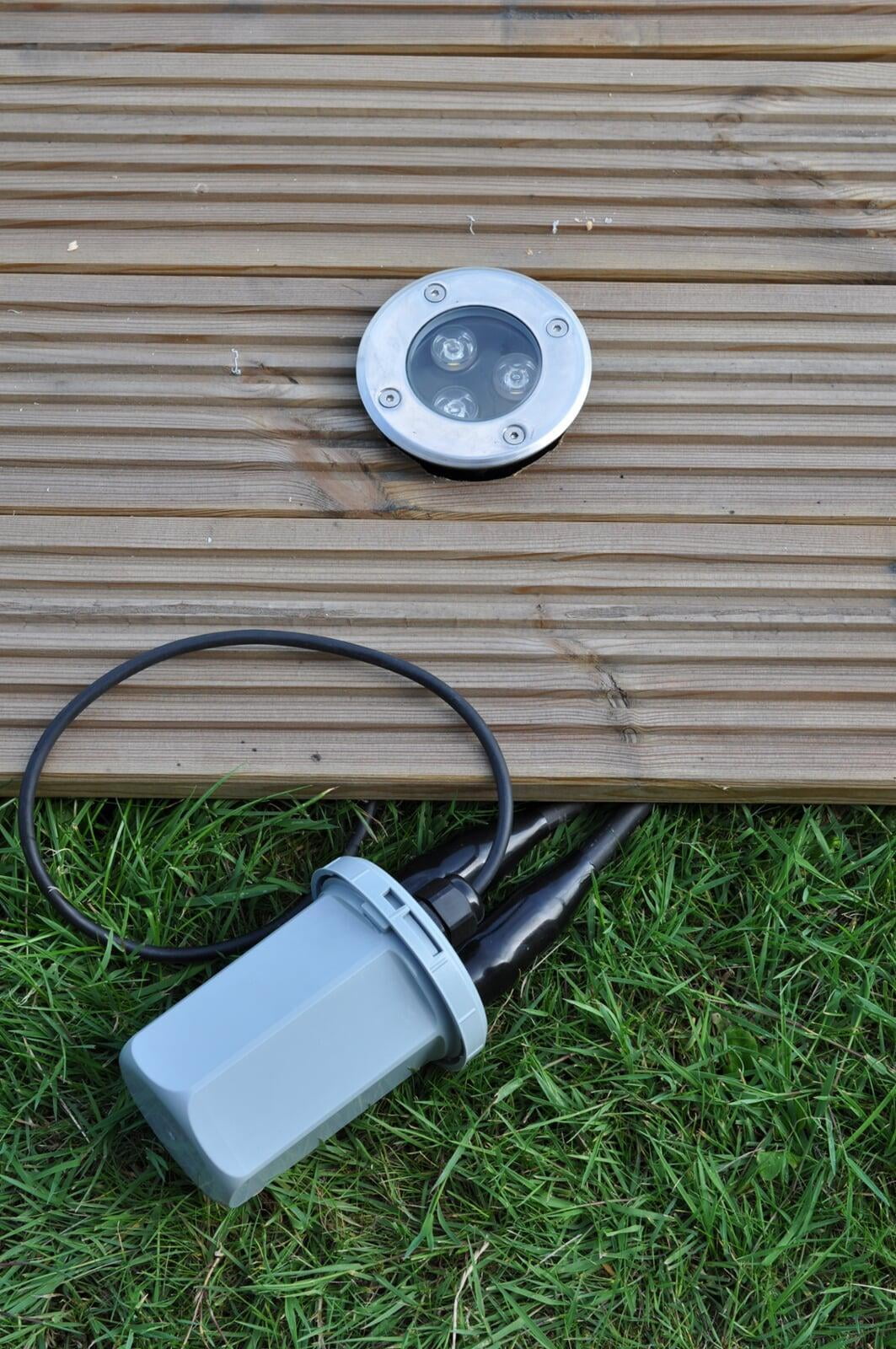

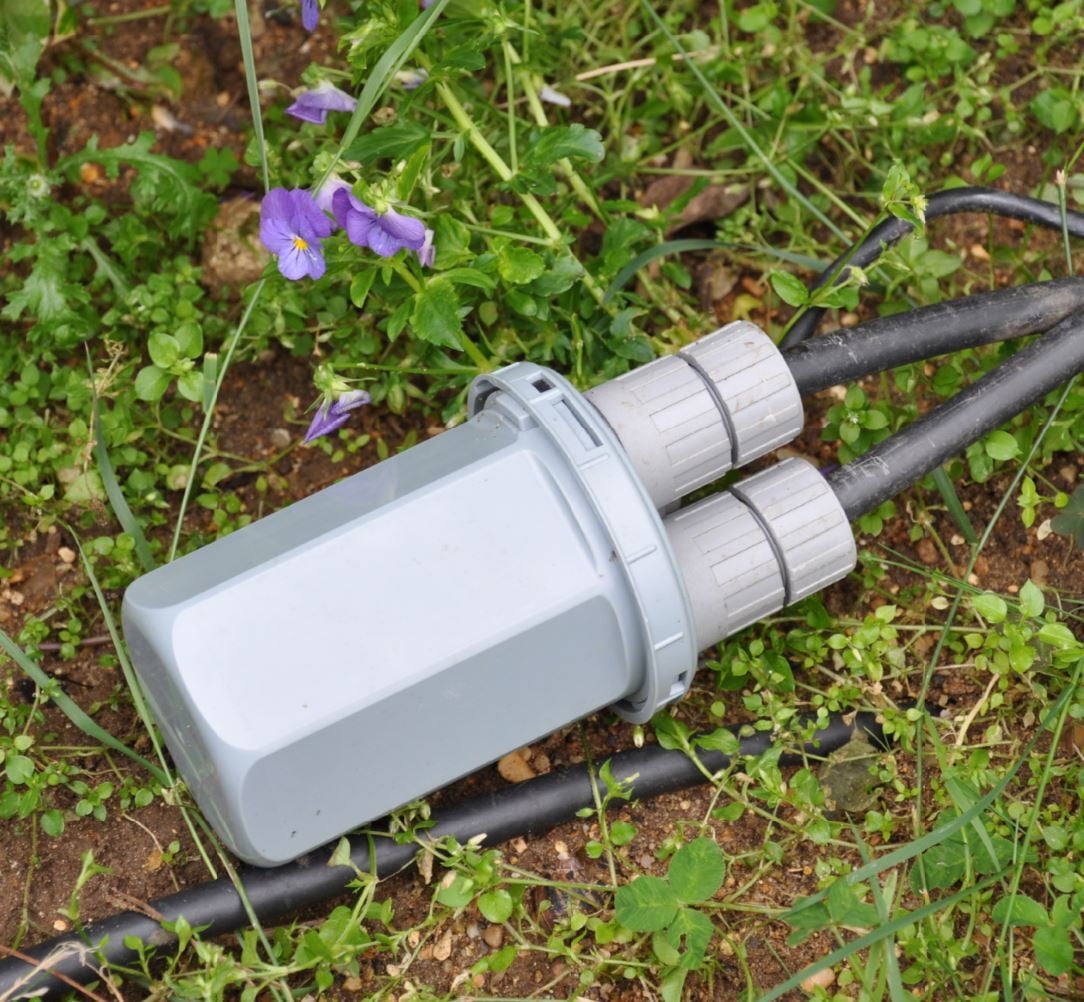

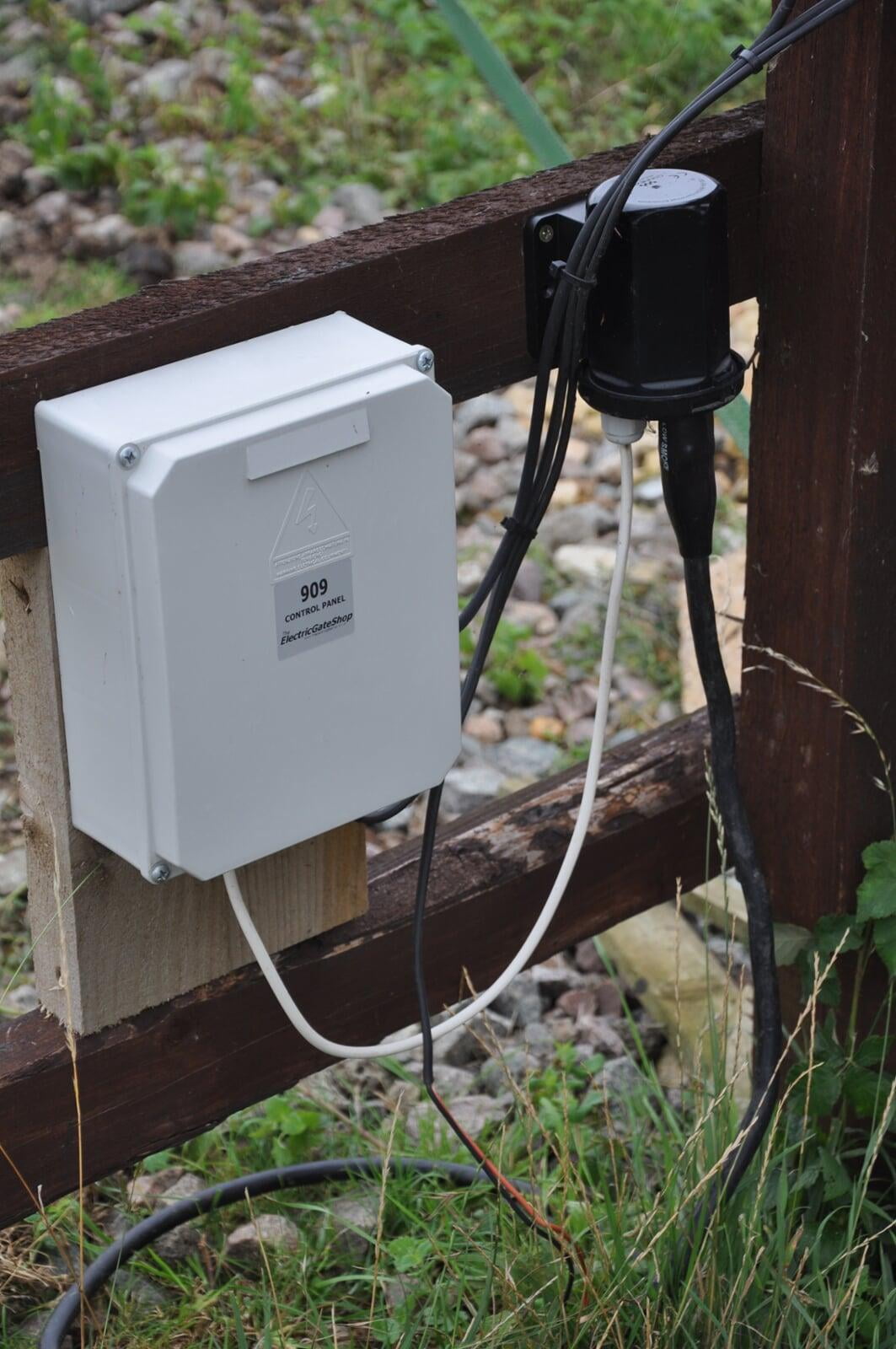

Purpose built for versatility, the Capsule is ideal for domestic, commercial, and industrial applications anywhere you need a secure, weatherproof enclosure. Its robust design makes it perfect for outdoor installations, garden lighting, external power feeds, underground cable joints, and harsh or exposed environments of all kinds.

Durable, dependable, and built to endure, the Connexbox Capsule keeps your connections protected where it matters most.

Available in grey, white, and black.

Specifications

Standards:	BS EN 60529
Ingress Protection:	IP68
Dimensions:	Lid diameter: 92mm, (H) 122mm, Body width: 85mm
Gland Sizes:	M16, M20
Connector Suitability:	Any
Current / Voltage Rating:	400V / 4KV
Product Includes:	Capsule base, Lid, 2x O Rings and 1x Sachet of Silicone Grease

Frequently Asked Questions

Are there any pre-cut gland holes?

No. The Connexbox Capsule is an adaptable enclosure. This means that holes will need to be cut using an appropriate hole cutter to suit the gland that will be fitted. Gland holes are usually quoted as: M12, M16, M20, M25, M32, M40, M50 and M63. These relate directly to the hole size required, eg. M12 is 12mm diameter hole.

What gland sizes can be used?

The Connexbox Capsule can be used with either M12, M16 or M20 glands. However, the Connexbox Capsule has in general been designed to be used with M20 glands.

What type of glands can be used?

Any type of gland can be used up to and including size M20.

How many glands can be fitted to the Connexbox Capsule?

Up to 11. 3 glands can be fitted to the lid and 2 glands to each of the 4 flat sides of the base. Though this is a possible solution, care needs to be taken not to over do it! Consider if each cable has three cores then there will need to 33 connection points within the capsule and this could then require multiple connectors to be joined together to make a common earth terminal for example. It may not be possible to get the lid back on! As a rule of thumb we would recommend keeping to a maximum of 5 gland entries.

What connectors can be used with the Connexbox Capsule

Any connector that is appropriate to the type of wire that needs to be connected.

Capsule Accessories

Wall Mounting Brackets

Available in Black, Grey or White.

Post Mounting Brackets

Available in Black, Grey or White.

Lid Earth Plate

Designed to ensure earth continuity when terminating brass glands into non metallic enclosure.

Side Earth Plate

Connexbox Capsule Stainless Steel Earth Bonding Plate for side entry applications

Thumb Tool

Operating Tool for releasing lid of the Connexbox Capsule

Compression Glands

IP68 GripLocSeal® Long Thread Metric range of nylon cable glands.

Armoured Cable Glands

The IPLUS™ Corrosion Guard Gland is designed for use with Steel Wire Armoured (SWA) cable.

OEM Options

We understand that some customers require enclosures for unique applications. That's why we offer bespoke modification of our existing Connexbox® products to meet your specific needs.

Our OEM projects include a European manufacturer of IoT environmental equipment who had created an ultrasonic level sensor for monitoring waste, sewage, and liquid levels. They approached us after seeing our IP68 Connexbox® Capsule and required a robust, waterproof enclosure to house the sensor.

After discussing their requirements, we began modifying the design of our standard IP68 Capsule and produced a prototype. Once approved by our customer, we manufactured the bespoke capsule to the required quantities and even laser engraved our customer's branding onto the product.

Contact our team today to discuss your specific requirements and let us create a custom solution for you.
