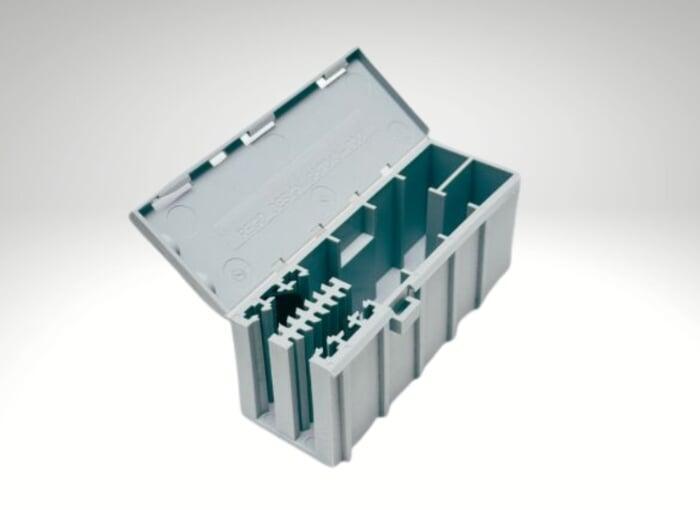

Connexbox® Classic
The Connexbox® Classic enclosure was the first of our enclosures designed specifically for use with the Wago® 222 lever clamp and 773 PushWire® connectors.
With configurable cable grippers and the ability to accommodate cables with an external diameter of up to 6 mm, providing a reliable hold for a variety of applications. Its fast-fit, slide-action mounting points enable easy surface installation after the connectors have been fitted inside the box, using the convenient Connexbox® mounting button.
CONNECT, SLOT & SECURE. SIMPLE!
Connect
Tip: Connect cables in free space before slotting connectors into both Wagobox receptacles
Slot
Tip: Cable grippers can be adjusted or removed to accommodate larger cables
Secure
Tip: A cable tie can be used to secure lid for a 'belt and braces' installation
For use with:

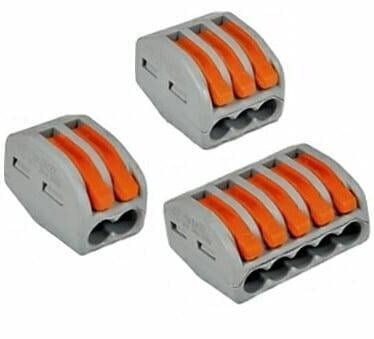

Wago 222 series

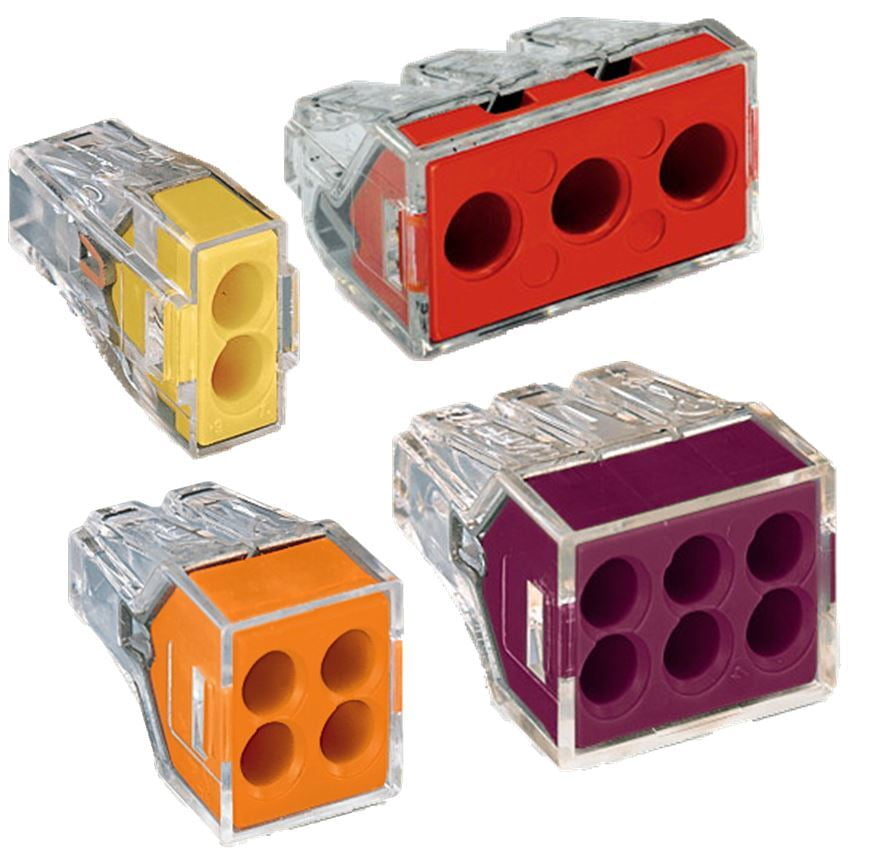

WAGO 773 series
WAGO 221 4 series
WAGO 2273 series
BS EN60670-22: Compliant.
BS 5733 MF accessory when used with Wago 222 and 773 connectors or Wago 221 and 2273 connectors using the appropriate adapters (sold separately). Use as directed in the BS 5733 MF instructions.
Ingress Protection: IP2X
Dimensions for single junction box: 39mm x 44mm x 108mm
Cable Clamp Capacity:
3 x 6.0mm² Twin & Earth or 4 x 4.0mm² Twin & Earth or 6 x 1.0, 1.5 or 2.5mm² Twin & Earth or 6 x 1.0 or 1.5mm² 3-core & Earth. 6 x Flex up to 8mm OD
Current Rating: Up to 41A
Voltage Rating: 400v/4kv
Mounting buttons may be sold separately.
