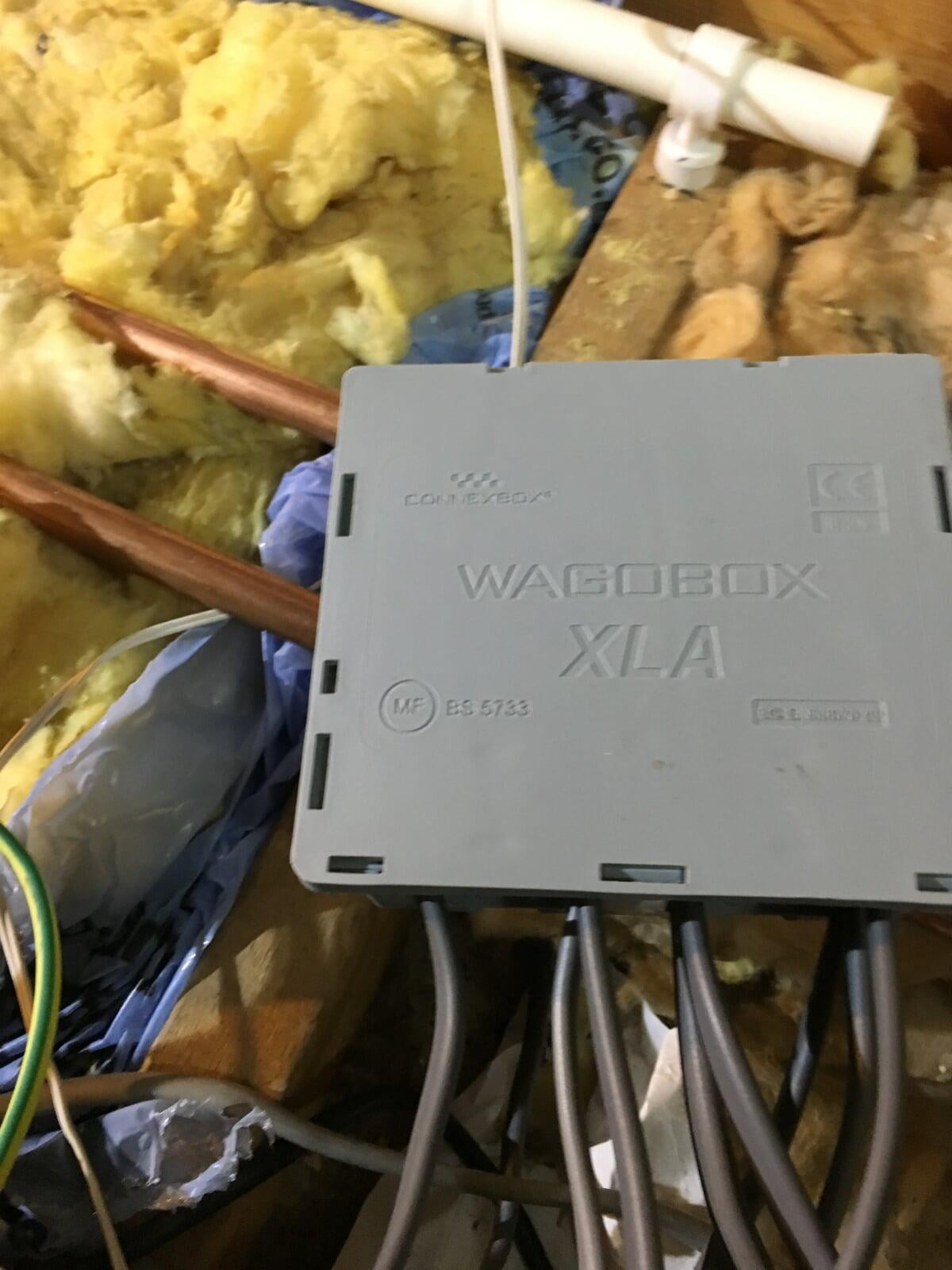

Connexbox® XLA
The Connexbox XL is our largest, most capable enclosure.
Purpose designed for installations that demand extra space, clearer organisation, and maximum flexibility. Whether you're running two completely separate circuits or a single, high-capacity circuit, the XL gives you room to work without compromise.

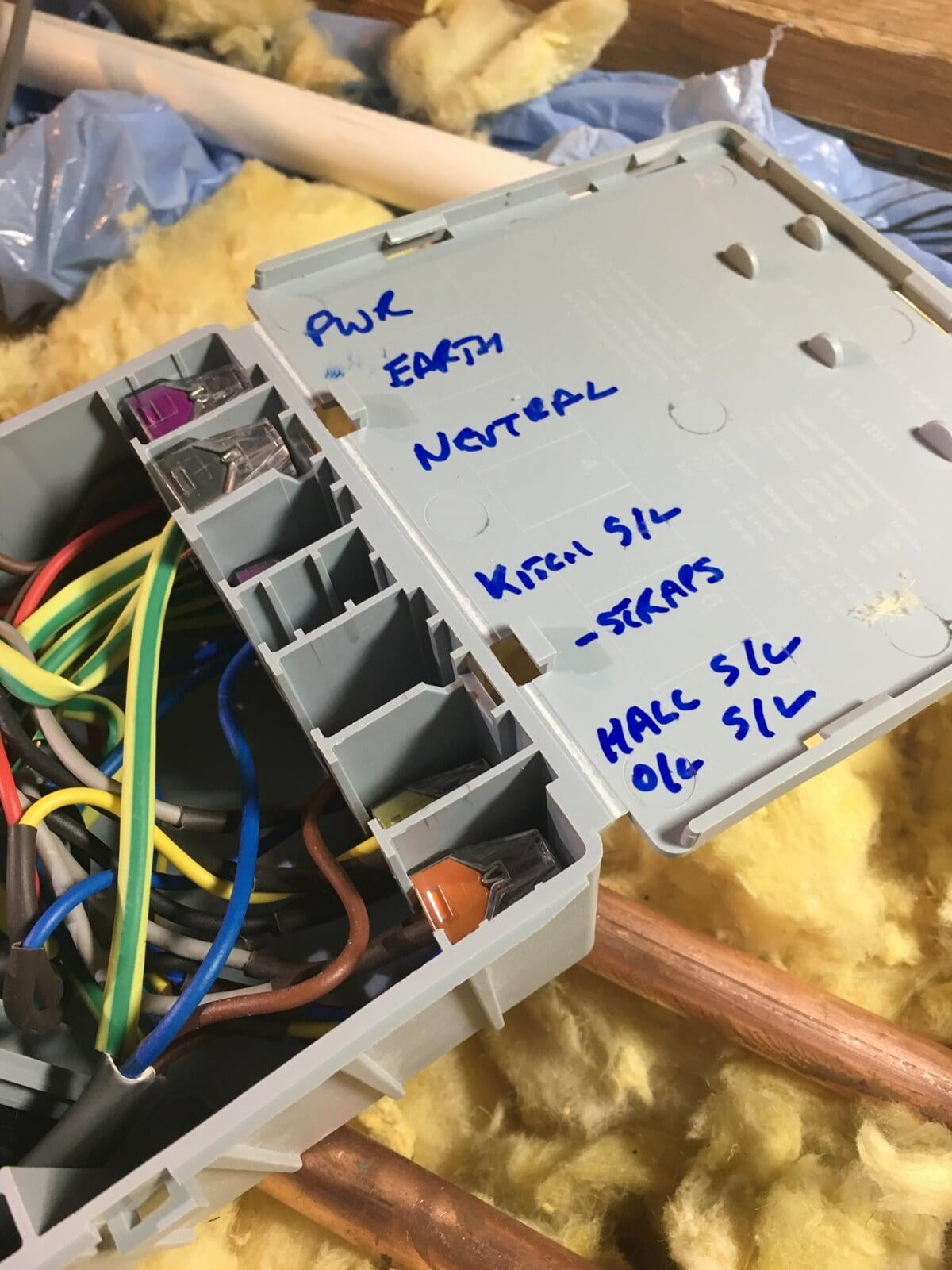

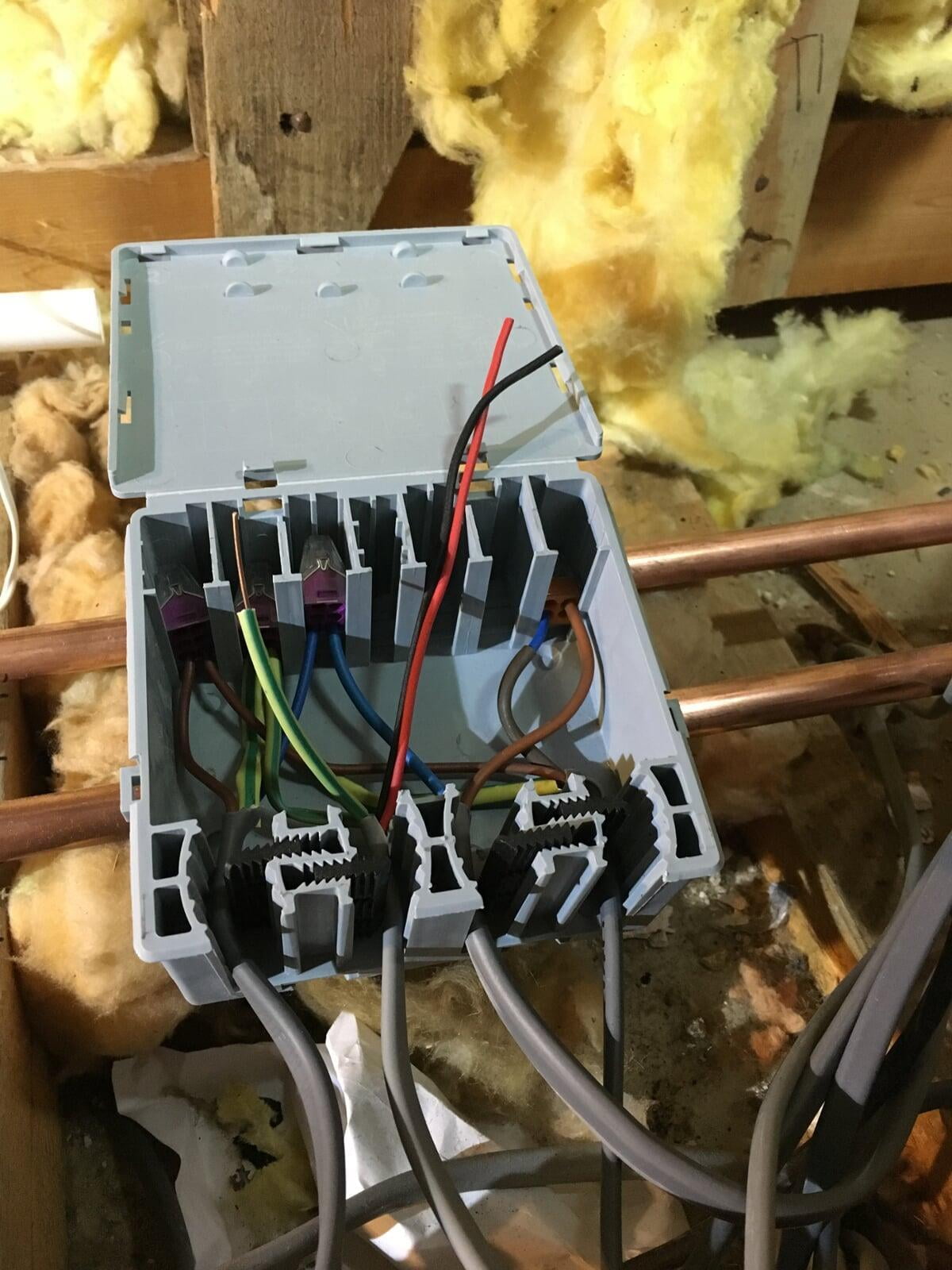

Built to accommodate Wago® 221-4, 2273, and 2773 series connectors, the XL gives electricians the freedom to build complex terminations while keeping everything clean, organised, and secure. Its spacious internal layout ensures smooth cable management and hassle free wiring. No squeezing, forcing, or rearranging required.
For single-circuit setups, the Connexbox XL is fully maintenance-free, offering a long-term, fit-and-forget solution ideal for lofts, voids, and inaccessible areas. Cable entries are spacious and reinforced with strong, reliable grippers that keep everything locked securely in place.
Compliant with BS EN 60670-22 and the 18th Edition BS 7671, the Connexbox XL delivers exceptional capacity, clarity, and convenience. When your project needs more space and more control, the Connexbox XL is built to handle it.
Specifications:
WAGO 222 series
WAGO 773 series
WAGO 221 4 series (with adapter)
WAGO 2273 series (with adapter)
BS EN60670-22: Compliant
BS 5733 MF: When used with Wago 222 and 773 connectors or Wago 221 and 2273 connectors using the appropriate adapters (sold separately). Use as directed in the BS 5733 MF instructions.
Ingress Protection: IP2X
Dimensions: Width 126 mm. Depth 115 mm, Height 55 mm
Conductor sizes: from 0.08mm² to 6mm²
The maximum permitted number of separately supplied individual circuits is two
The maximum number of individual conductor connections is 36, based on the installation of twelve 3-core cables of 1mm²
The maximum number of 6mm² connections is 18 based on installation of six 3-core cables
Voltage Rating: 450V

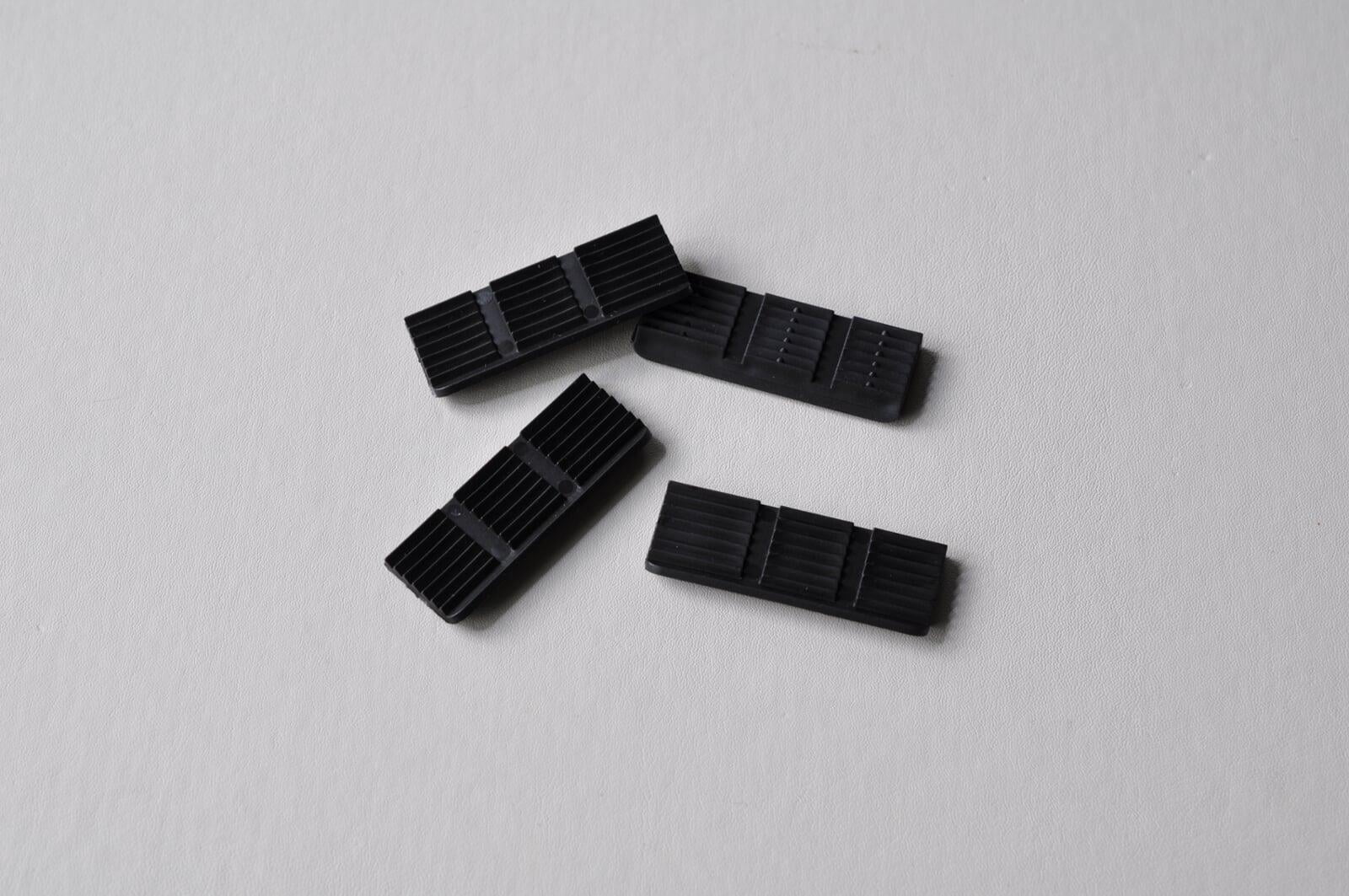

Mounting buttons may be sold separately.
