Connexbox® Light
Reliable, versatile inline junction box for electricians. The Connexbox® Light enclosure is engineered for quick, safe, and compact cable connections. It works seamlessly with WAGO® 221-2411 inline connectors and WAGO® 224, 260, and 294 terminal blocks, and is also compatible with popular alternatives such as the Ideal 32A 2-way push-wire connectors.
Perfect for joining and extending fixed wiring – including twin & earth, singles, or flex – this inline junction box is ideal for lighting circuits and small power applications where the enclosure remains accessible for inspection and maintenance.

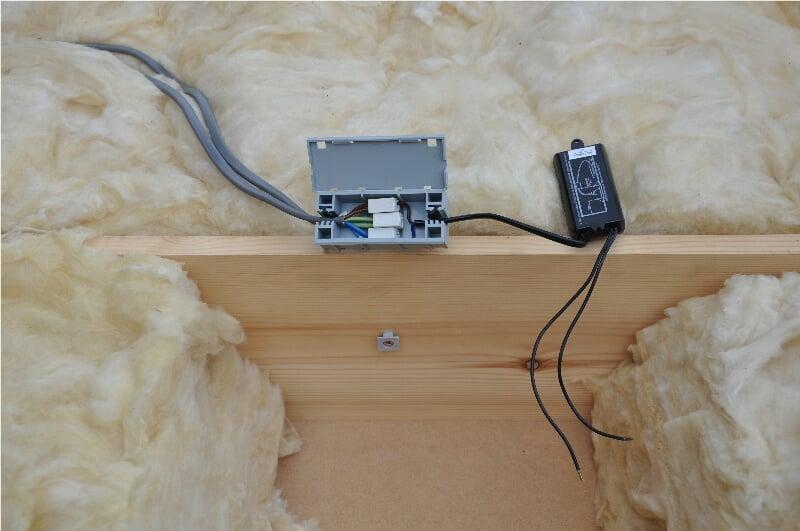

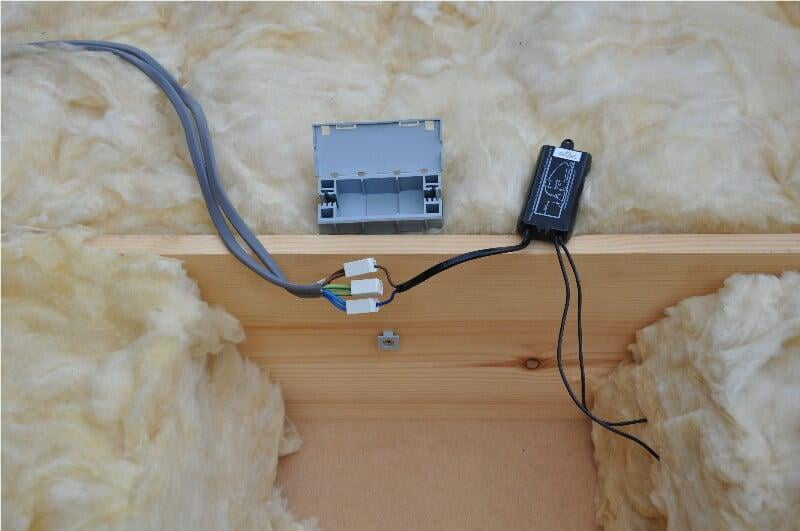

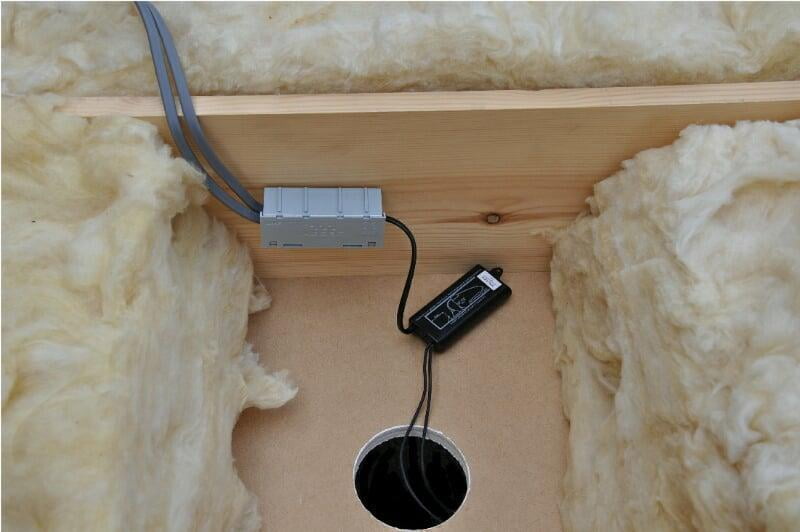

The Connexbox® Light can be fitted in ceilings, cupboards, voids, or similar accessible locations. Side-action mounting points and the convenient Connexbox® mounting button make surface installation simple, even after the connectors are in place.
Technical Data
For use with:

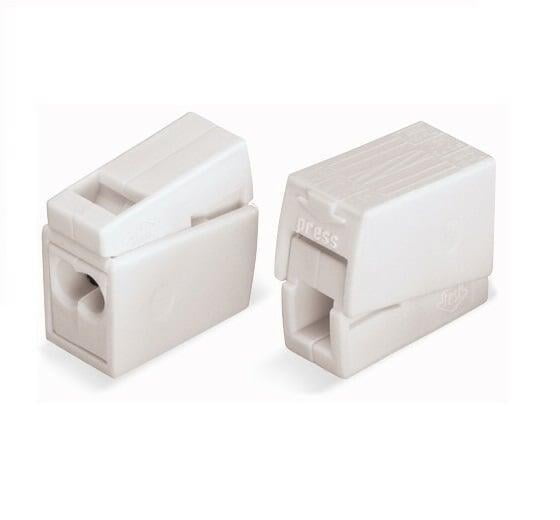

WAGO 224-112 connectors

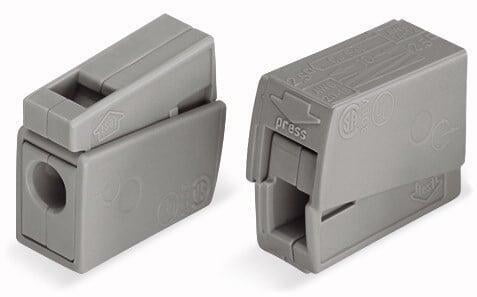

WAGO 224-101 connectors
WAGO 260 connectors

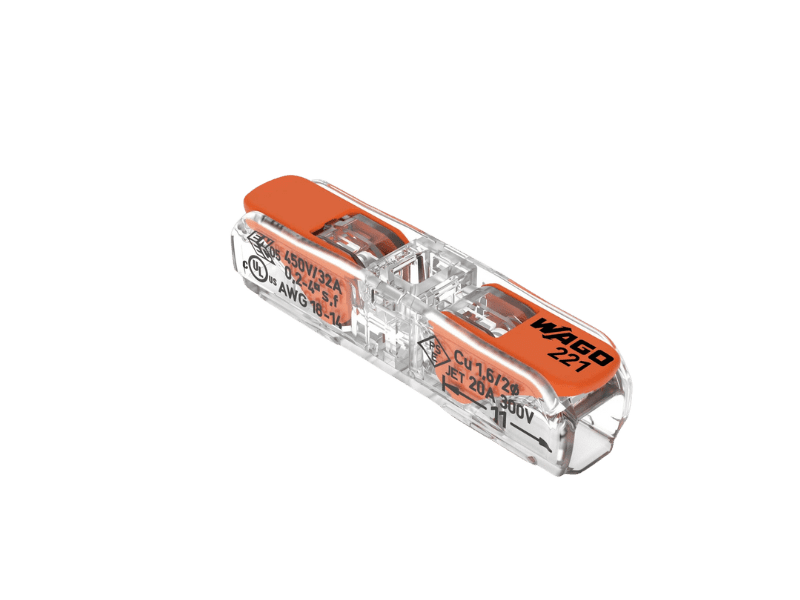

WAGO 221-2411 Inline Connector
WAGO 290 connectors
Can be used as a BS 5733-MF (Maintenance Free) Accessory only with Wago 221-2411 Inline Connectors and Wago 221-2533 Mounting Carrier. Maintenance Free accessory instructions included with Wagobox Light enclosure must be followed.
BS EN60670-22 Compliant
Ingress Protection: IP2X
Weight: 28g
Cable sizes: 3 x 1.5mm² Twin & Earth or 3 x 1.0mm² Twin & Earth flat solid core to 1 x 0.5mm² -- 1 x 1.5mm² flex
Overall Cable Diameter: 3.0mm to 8mm
Dimensions for single junction box: 39mm x 29mm x 95mm
Voltage rating: 450v / 4.5kv
Maximum connector capacity: 4 x 224-112 OR 4 x 224-101 OR 3 x 221-2411 Inline Connectors
Mounting buttons may be sold separately.
Accessories

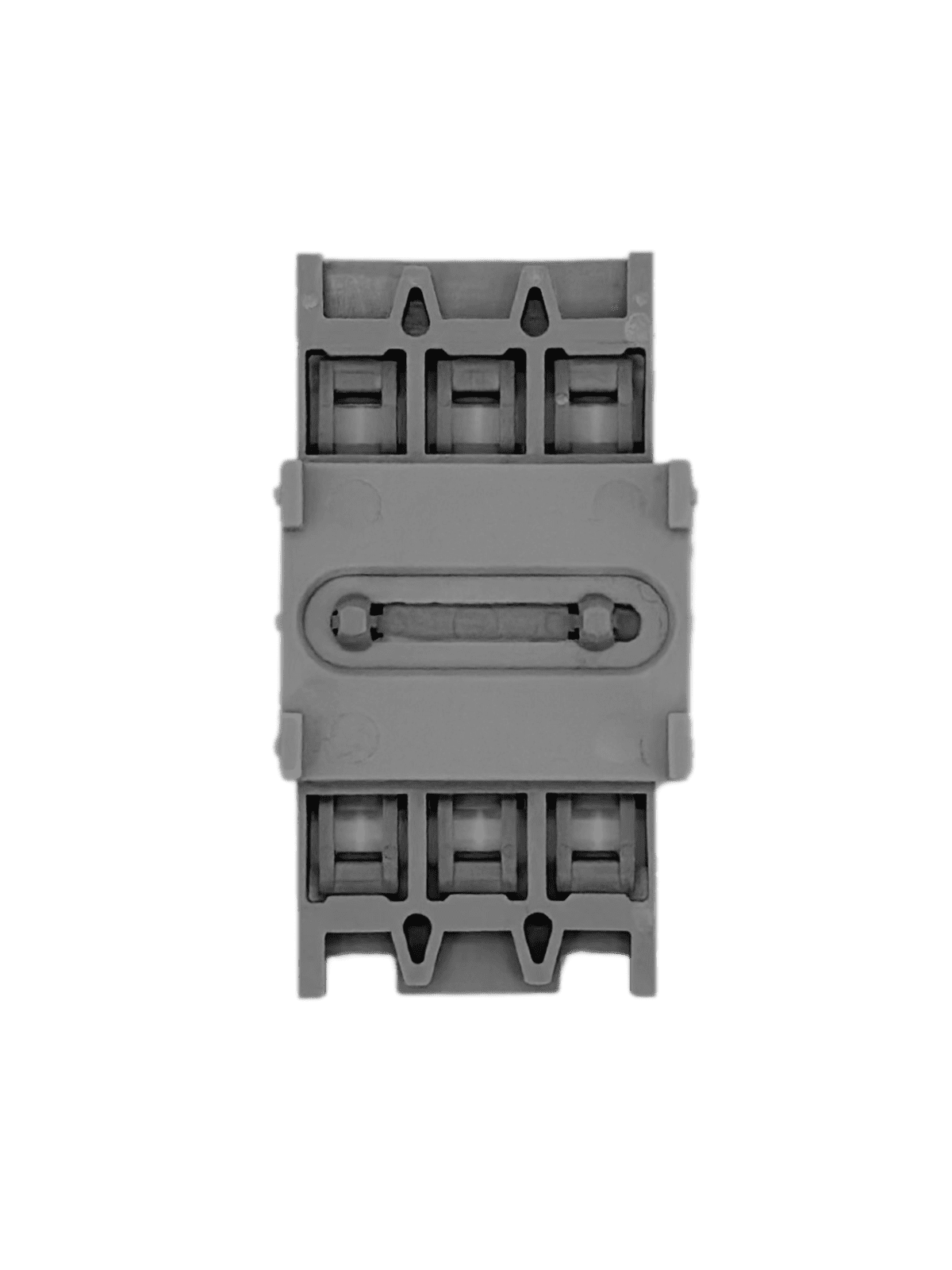

221-2533 Mounting & Terminal Carrier
Mounting Buttons
